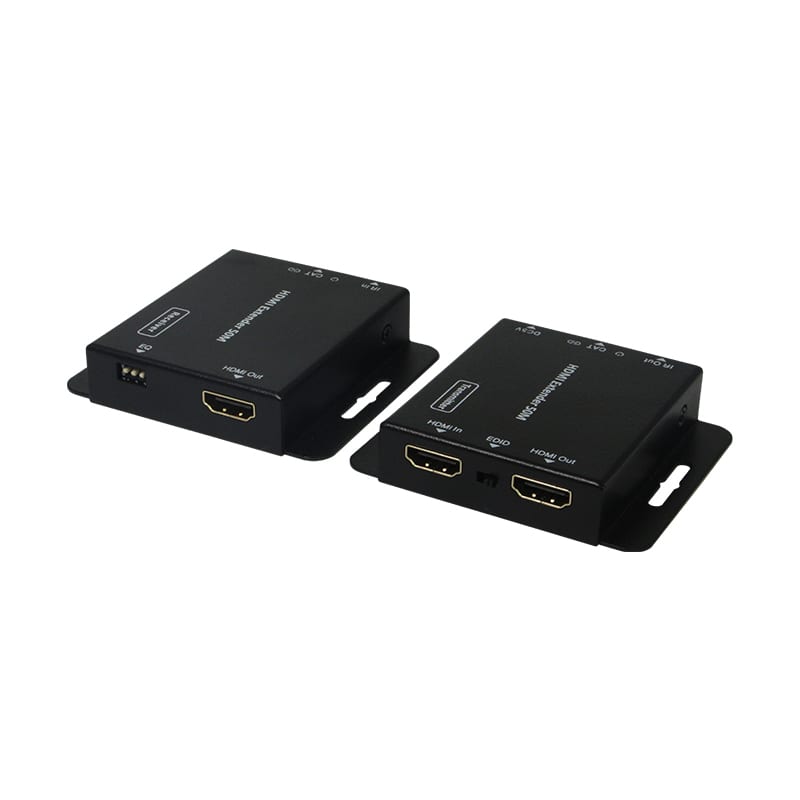

HDCVT HDMI Extender 50m...

Features: Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable Allows for cascading via additional HDMI loop out port Supports Power over cable function Extends 1080p resolution up to 50m over a single Cat5e or Cat6 cable Works with HDMI and HDCP compliant devices Supports up to 1080p High Definition resolution Compact design for an easy and flexible installation Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 Video Bandwidth 4.95 Gbps Video Resolutions up to 1080P@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit Audio Formats PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) Connections Inputs TX: 1x HDMI Type A [19-pin female] RX: 1x RJ45 [HDMI & Propriety Data] 1x 3.5mm Stereo Mini-jack [Infrared Receiver] Outputs TX: 1x HDMI Type A [19-pin female] 1x RJ45 [HDMI & Propriety Data] 1x 3.5mm Stereo Mini-jack [Infrared Emitter] RX: 1x HDMI Type A [19-pin female] Mechanical Housing Metal Enclosure Dimensions TX/RX:60mm [W] x 60mm [D] x 15mm [H] Net Weight TX/RX: 300g Power Supply Input: AC100 – 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption (Max) TX: 1.5W RX: 1W Operation Temperature 32 – 104°F / 0 – 40°C Storage temperature -4 – 140°F / -20 – 60°C Relative Humidity 20 – 90% RH (no condensation)
